Products
Equipment engineered, fabricated and tested by Jevica.
A working catalog of the equipment Jevica manufactures — added to as products are confirmed. Get in touch for full technical documentation on any item below.
Showing 17 of 17 products
Air Handling Units
Double Skin Ceiling Suspended Air Handling Unit (AHU)
Also known as a ductable unit, this compact, ceiling-suspended AHU handles filtration, conditioning and distribution of air in commercial and industrial spaces. Available in belt-drive (JCCU) and direct-drive (JDCCU) configurations across several sizes, with air delivery from roughly 3,375 to over 10,000 m³/hr. Its suspended mounting keeps it above the ceiling line, connecting directly into the ductwork it serves — a space-saving option where floor-mounted plant isn't practical.
Typical applications
Typical applications for this category of equipment — confirm against Jevica's current product range.
Air Handling Units
Double Skin Horizontal Floor Mounted Air Handling Unit (AHU)
A heavy-duty, floor-mounted double-skin AHU built for higher-capacity air treatment in commercial and industrial facilities, manufactured across the JAHU size range with air delivery from roughly 3,450 to 30,000 m³/hr. Its sectional construction — insulated double-skin casing with PUF insulation, service access doors, and a top-mounted heat-exchange section — allows the air-treatment stages to be configured to the project rather than fixed at manufacture.
Typical applications
Typical applications for this category of equipment — confirm against Jevica's current product range.
Fans & Blowers

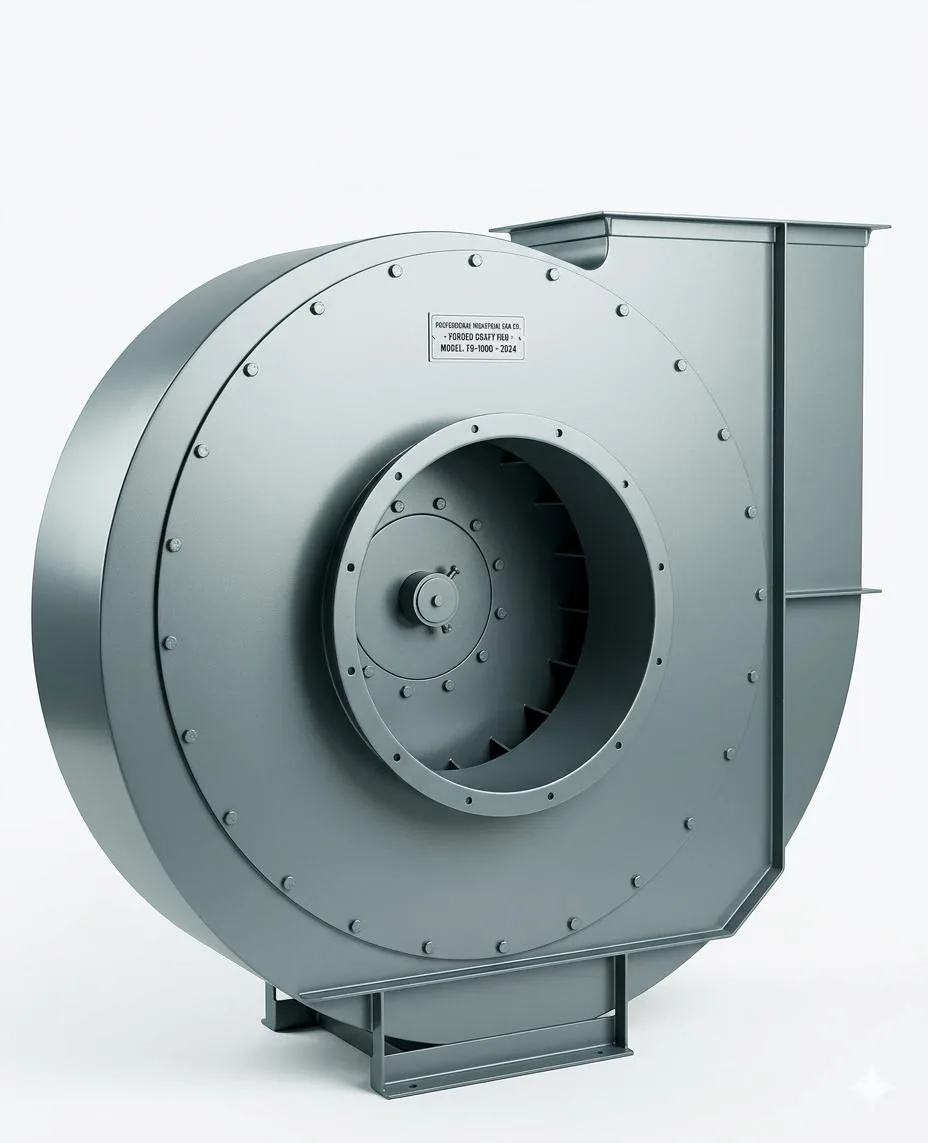

Industrial Centrifugal Blower
A centrifugal blower for moving air through ductwork and air-distribution systems in HVAC and industrial ventilation applications. Its scroll-type housing directs air from the centrifugal impeller into the outlet duct connection, and the unit sits on a floor-mounted base frame.
Typical applications
Typical applications for this category of equipment — confirm against Jevica's current product range.
Pumps
Industrial Centrifugal Pump
A volute-type centrifugal pump for circulating water through HVAC and industrial piping systems — chilled water, hot water and condenser water loops. Its cast, bolted casing houses the impeller and directs flow out through a flanged discharge connection, with the whole unit sitting on a base-mounted frame.
Typical applications
Typical applications for this category of equipment — confirm against Jevica's current product range.
Air Handling Units

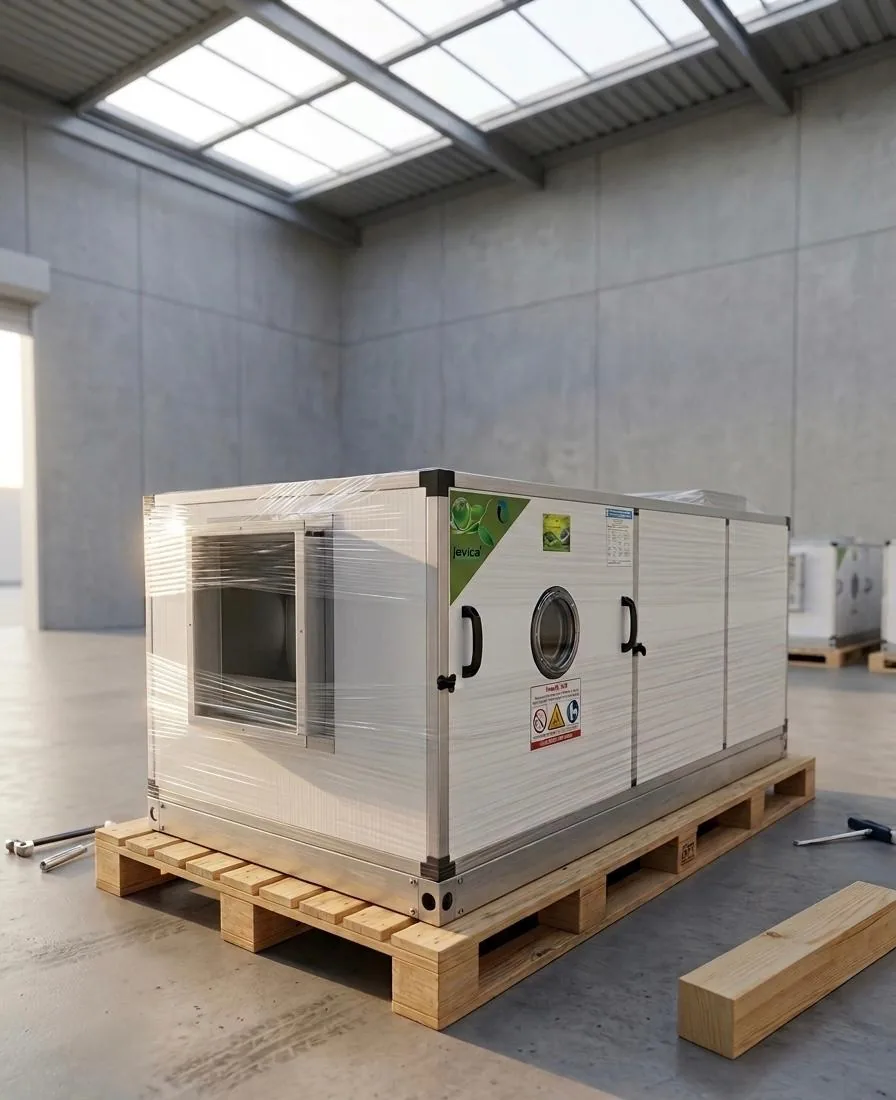

Air Handling Unit
A factory-built air handling unit for filtration, conditioning and distribution of air across commercial and industrial systems, shown here crated and ready for site delivery. Configured to the project's ductwork and capacity requirements ahead of installation.
Typical applications
Typical applications for this category of equipment — confirm against Jevica's current product range.
Dampers
Motorized Volume Control Damper
An actuator-driven multi-blade damper for regulating and controlling airflow within ductwork. The opposed blades are linked to a motorized actuator, allowing airflow to be adjusted or shut off as part of a wider HVAC control sequence, and the galvanized frame connects directly into the duct run it serves.
Typical applications
Typical applications for this category of equipment — confirm against Jevica's current product range.
Air Handling Units
Single Skin Air Handling Unit (AHU)
A panel-type single-skin AHU built from heavy-gauge zinc-coated steel, manufactured across the JSAH size range with air delivery from roughly 3,455 to 42,500 m³/hr. Equipped with Jevica's Free Flow coil design, tubular fan shafts and a fully insulated, extended drain pan, suited to comfort and industrial applications where a complete, flexible accessory range is needed.
Typical applications
Air Handling Units
Double Skin Vertical Air Handling Unit (AHU)
A vertical-format double-skin AHU for installations where floor footprint is limited, manufactured across the JVAU size range with air delivery from roughly 3,540 to 19,960 m³/hr. Optional true thermal-break construction, rounded inner corners and stainless-steel inner-skin configurations are available, along with low-leakage volume control dampers at the air inlet and outlet.
Typical applications
Air Washers & Evaporative Cooling
Air Washer / Evaporative Cooling Unit
A factory-assembled package-type evaporative cooling machine: a circulating pump wets cellulose cooling pads, and a centrifugal fan draws air through them, cooling it before delivery direct to space or through ductwork. Built in a galvanized sheet-steel housing on an MS angle-iron base, available across a capacity range from roughly 3,400 to over 150,000 m³/hr. Spray-type, RCC, gel-type, capillary and low-profile rigid-media variants are also part of the range.
Typical applications
Fans & Blowers

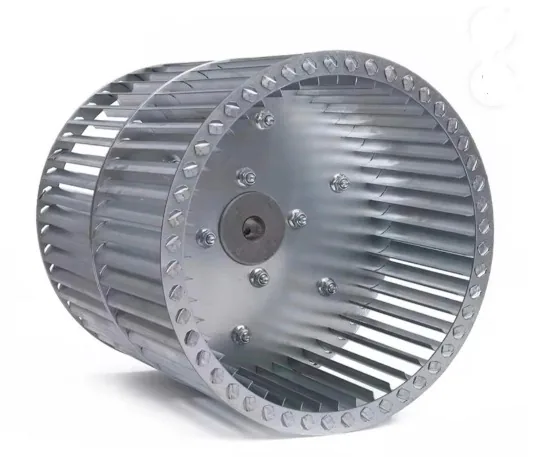

Centrifugal Fans & Blowers (DIDW / SISW)
Forward-curved, square-outlet centrifugal fans in double-inlet (DIDW) and single-inlet (SISW) configurations, fully galvanized sheet-steel construction without welding. Available in diameters from 160 to 1,000 mm, with capacity up to roughly 55,000 m³/hr and pressure up to 150 mm WC, across a −20°C to +80°C temperature range. Impellers are statically and dynamically balanced to ISO 21940-11, and every fan is performance tested before dispatch.
Typical applications
Exhaust
Axial Flow Fan
Duct-mounted axial flow fans (JAFF series) for high-efficiency industrial ventilation, built with a robust 14-gauge mild steel casing and MS flanges. Precision-cast aluminum impellers are statically and dynamically balanced for minimal vibration and long service life. Available across fan diameters from 300 mm to 1,200 mm, with airflow capacities up to roughly 50,000 m³/hr depending on size and static pressure; higher-capacity configurations are available on request.
Typical applications
Exhaust

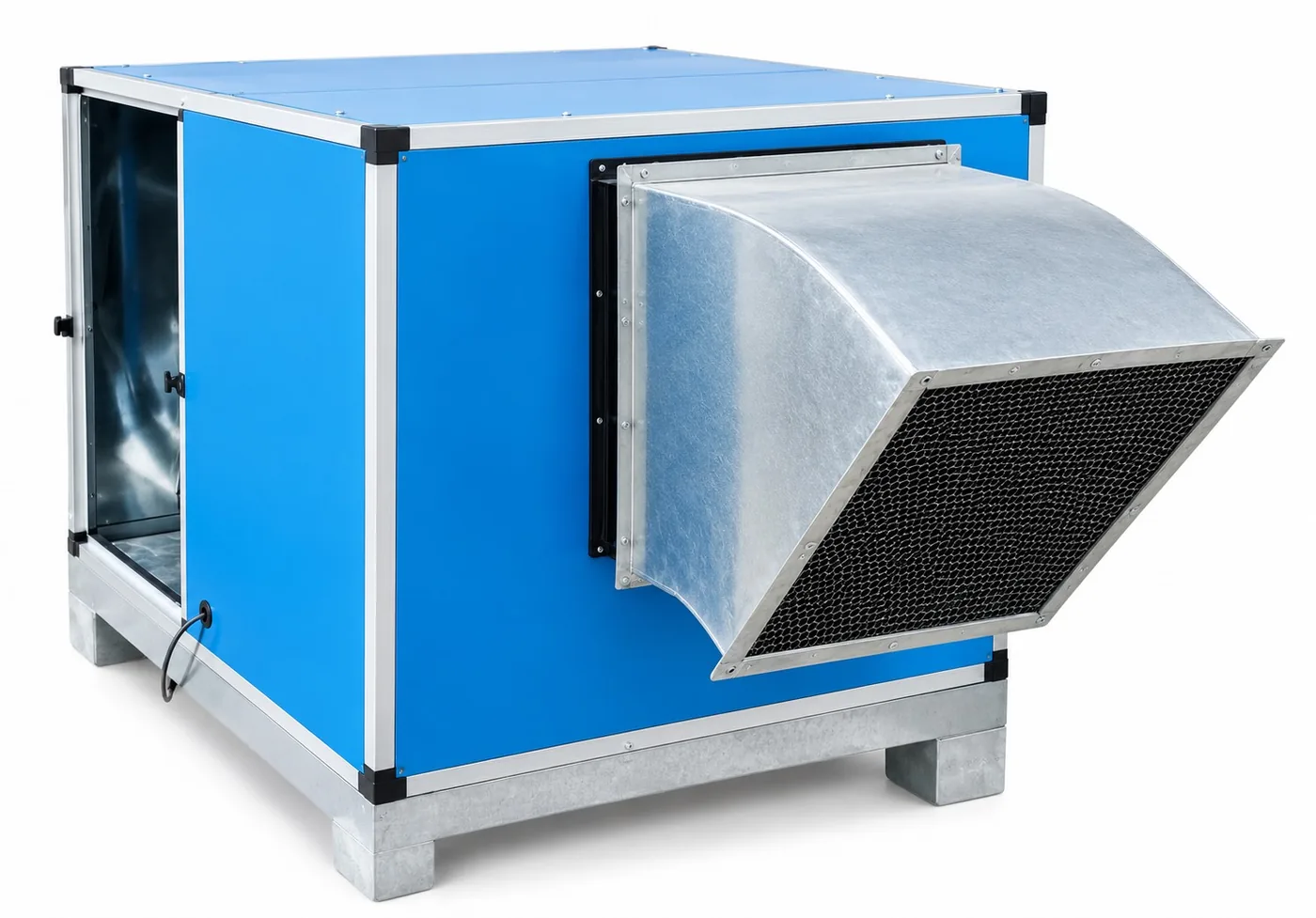

Cabinet Type Air Exhaust Unit
The Jevica Cabinet Exhaust Unit (JCEU series) packages a fan into an enclosed cabinet for reliable air extraction across a wide range of static-pressure requirements, from compact low-pressure sizes up to heavy industrial units driven by motors as large as 12.5 HP, delivering air extraction rates up to roughly 50,000 m³/hr on the largest sizes.
Typical applications
Fans & Blowers

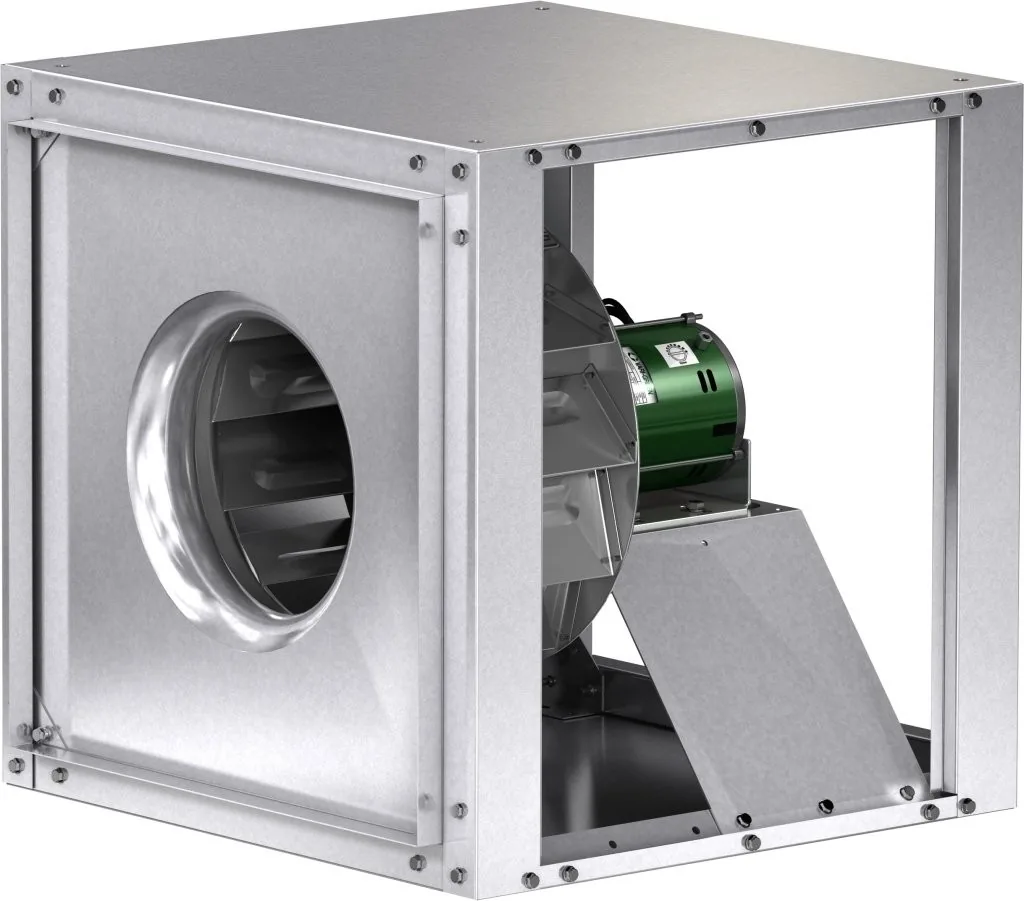

Centrifugal Inline Fan
A compact, galvanized-casing inline fan that fits directly into a duct run, moving air through the system without needing a separate plenum or housing. Built for straightforward duct-mounted installation in smaller ventilation branches.
Typical applications
Fan Coil Units
Fan Coil Unit — Ceiling Concealed
A low-height, ceiling-concealed fan coil unit (JFCU-CC series) with an aluminum forward-curved DIDW centrifugal fan, 3-speed 230V single-phase motor and a spring-return 3-way control valve. Manufactured across five sizes with airflow from 680 to 2,040 m³/hr, sized to the coil face area and cooling load required.
Typical applications
Fan Coil Units

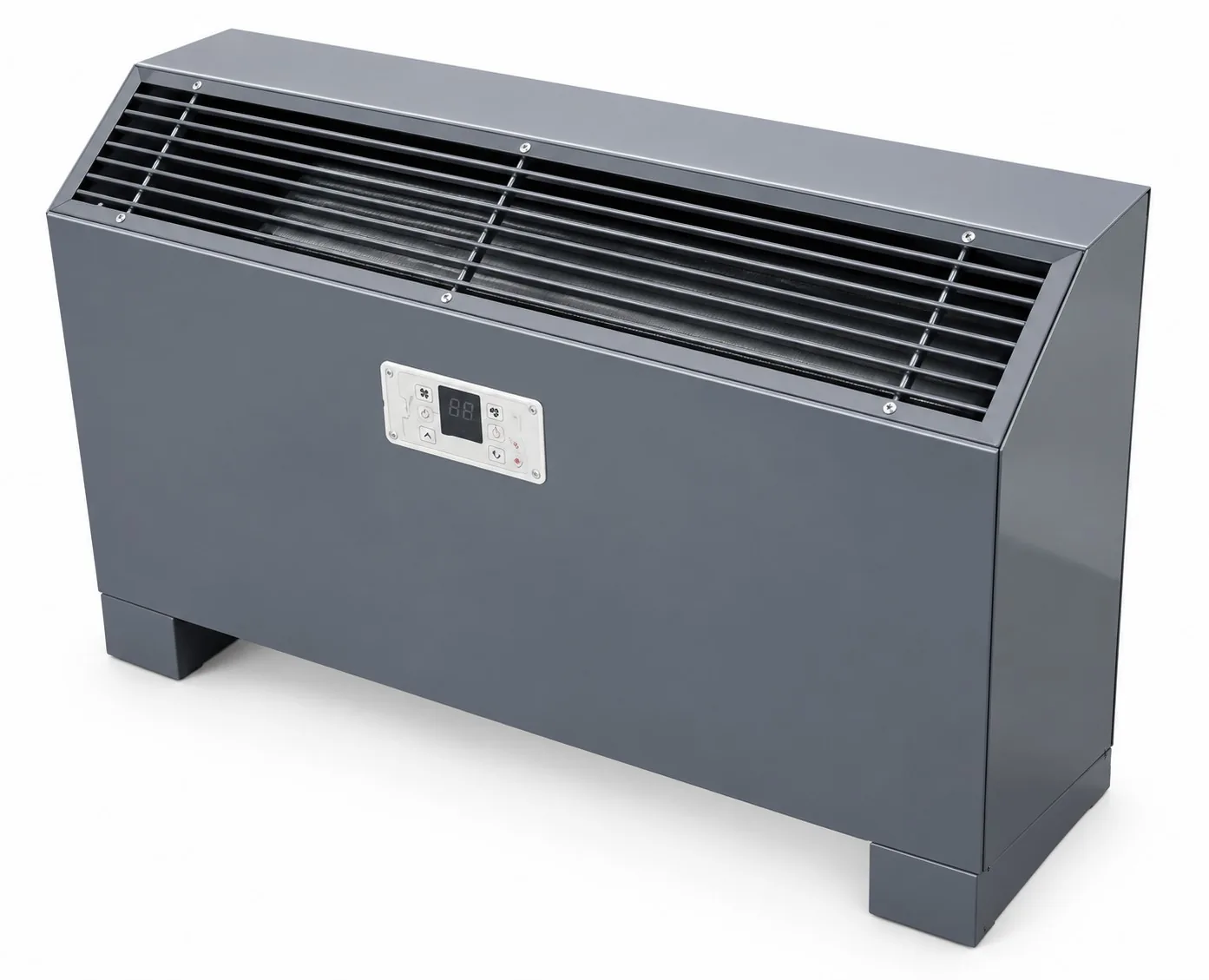

Fan Coil Unit — Floor Mounted
A floor-mounted fan coil unit (JFCU-FM series) with an aluminum forward-curved DIDW centrifugal fan and a 3-speed, 3-way spring-return control valve. Manufactured in nominal cooling capacities from 1.0 to 3.0 TR, with 3- or 4-row coil options depending on size, for standalone or perimeter installation.
Typical applications
Heating

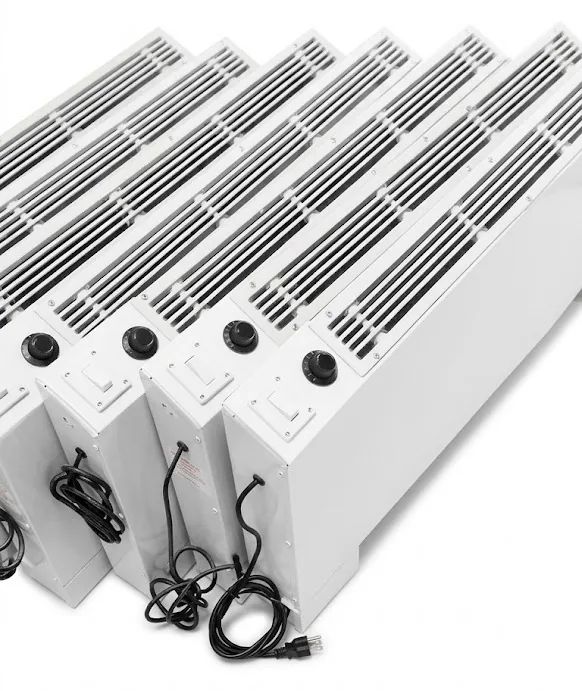

Heater
A finned electric unit heater for supplementary space heating in commercial and industrial interiors, shown here ready for dispatch. [Confirm capacity and model range once specifications are finalized.]
Typical applications
Heating

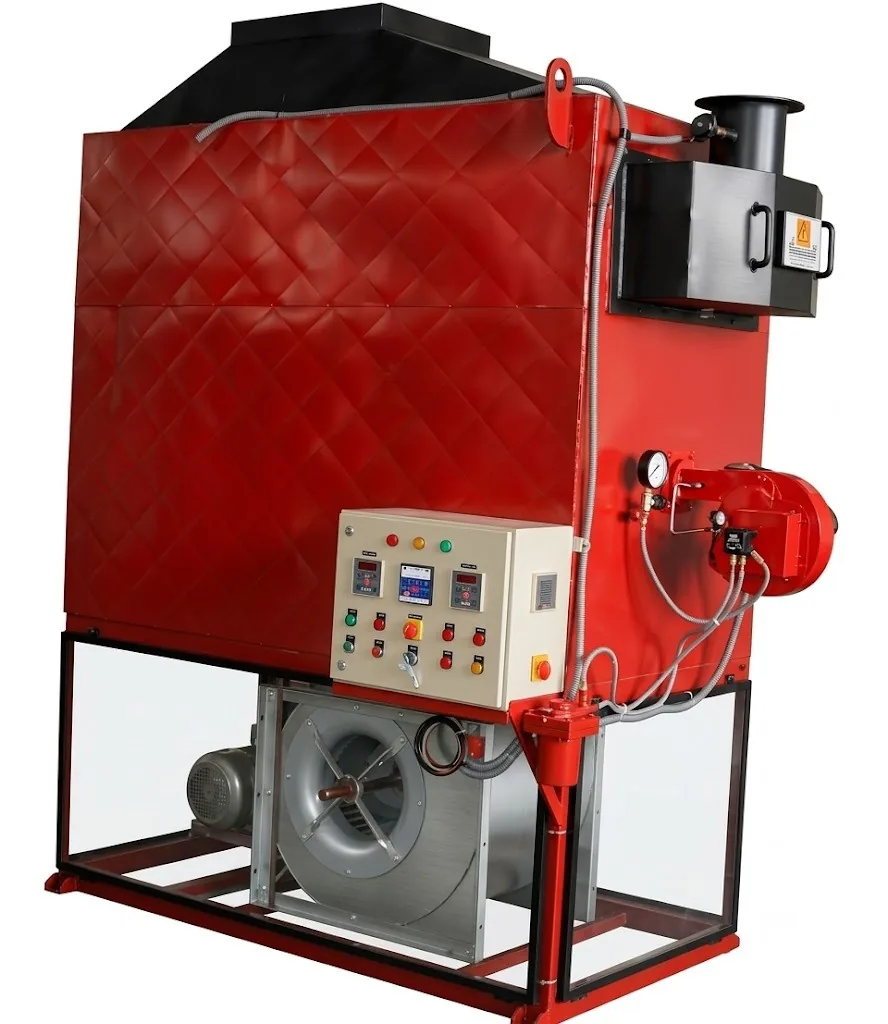

Hot Air Generator
A burner-driven hot air generator combining a combustion unit with a centrifugal fan section to deliver heated air through ductwork, for process heating and large-volume space heating in industrial buildings. [Confirm capacity and model range once specifications are finalized.]
Typical applications
More Products
The rest of the range is on its way.
This catalog will grow as more of Jevica's equipment is confirmed and added. For full specifications on equipment not yet listed here, get in touch directly.
